Food waste treatment system MEIKO BioMaster®

Servicing and technical data

ADVANTAGES

  • No open buckets or bins of food waste to move around

  • No unpleasant odours

  • No flies, vermin or mould spores

  • Compact, stand-alone appliance requiring little space

  • Fully integratable

  • Less collection by waste disposal firms

MODELS

for kitchen waste and leftovers

Whether you serve 100 or more than 10,000 covers per day – we have the right solution for your needs with the BioMaster® waste treatment system.



MEIKO BioMaster® 4 HIGHLINE


MEIKO BioMaster®4 Plus


MEIKO BioMaster® FLEX
Dimensions (W x H x D)500 x 870 - 930 x 700 mm
ChassisCompletely in stainless steel 1.4301, underfloor closed
Chute volume28 l
Programme cycle110 s


MEIKO BioMaster® Flex DirectFeed
MEIKO BioMaster®4 Highline

Our most efficient infeed station for processing organic kitchen waste and leftovers in the hospitality sector. Programme selection with STANDARD and DRY options ensure efficient food waste processing and sorting.

The homogenisation technology specially developed by MEIKO GREEN offers the necessary process reliability with a minimum of added process water.

The disposal units offer top-notch hygiene and are easy to clean thanks to their practical shape, 150 mm ground clearance, optimised connections to table units, and a whole series of other clever details.

When compared to the BioMaster® 4 PLUS, the HIGHLINE has more features to make operation even easier: a hand spray, integrated water meter, and integrated cleaning programme.

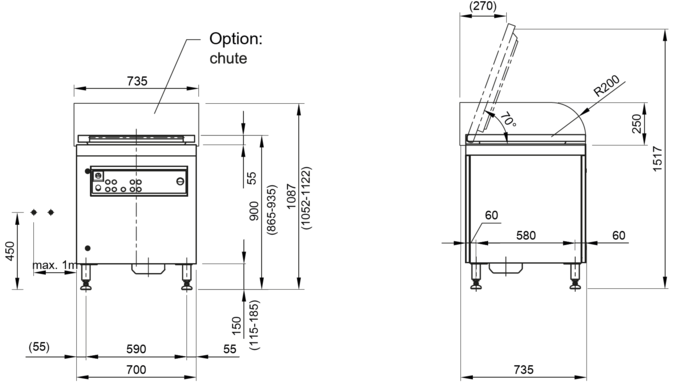

Measurements

For further product information, please contact your sales partner.

MEIKO BioMaster®4 PLUS

The BioMaster® 4 PLUS comes on the same chassis as the BioMaster®4 HIGHLINE: 150 mm ground clearance, can be plinth-mounted, easy to clean, standard-compliant water supply, attaches to tables and hygiene stations, yet this appliance is in a class of its own. The right machine for use in medium to large commercial kitchens. Kitchen waste and leftovers can be processed in just 50 seconds. From breakfast to dinner, norm-compliant processing is guaranteed. A symbiosis between power and design.

Measurements

For further product information, please contact your sales partner.

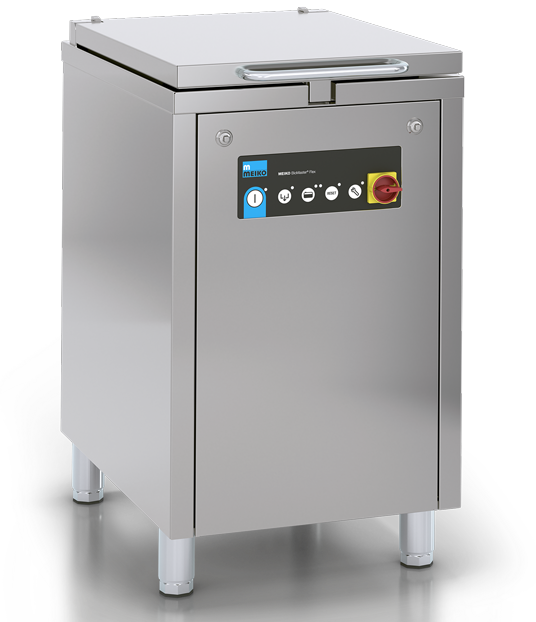

MEIKO BioMaster® Flex

The newcomer in the BioMaster® range: The BioMaster® Flex offers the advantages of the BioMaster® range in a compact, versatile package.

With a width of just 500 mm, it is extra compact and extremely flexible in terms of installation. This makes it particularly suitable for retrofitting or kitchens with limited space.

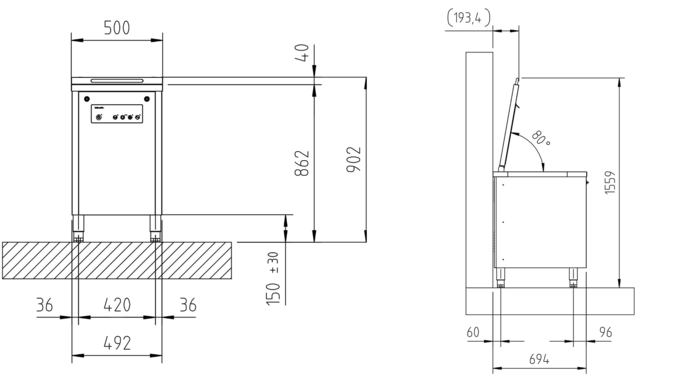

Measurements
Dimensions (W x H x D)500 x 870 - 930 x 700 mm
ChassisCompletely in stainless steel 1.4301, underfloor closed
Chute volume28 l
Programme cycle110 s
Macerator3 kW
Feed pump „BioPump®“1.1 kW impeller pump, stainless steel housing, 4.5 m conveyor height
Cold water connectionShut-off valve with ¾" external thread
Addition of process waterAutomatic, guaranteed minimum water addition
Electrical connectionCEE socket, 400 V, 50 Hz, 16 A, 4.5 kW, clockwise rotating field
Protection class of the machineIP X5
Noise emission65 dB
Leergewicht157 kg
Additional equipmentUnlocking key optional: Splashguard extension for loading chute, cutlery magnet, pre-grinder, pre-rinsing programme
BioMaster® Flex DirectFeed

The BioMaster® Flex with DirectFeed makes food waste disposal easier than ever. Simply turn the dishes over – and let the leftovers drop into the hatch provided. No need for staff to twist their upper body into uncomfortable positions or shift from one spot to another. This ensures ergonomic workflows and significant relief in day-to-day operations.

As the perfect efficiency upgrade for your M-iQ flight type dishwashing machine, DirectFeed reliably prevents conveyor jams caused by food waste. At the same time, it makes the wash-up area neater and more organised: with no need for separate bins or food waste containers, there's more room to keep things running smoothly.
Thanks to its compact design, the BioMaster Flex DirectFeed is also suitable for smaller kitchens where space is tight. It can be used as a stand-alone unit or integrated ergonomically between the washing and conveyor technology – exactly as your layout requires.

What's more, the top cover can simply be washed in the dishwasher, so it's also a great everyday choice for top-notch hygiene. ​

Simple. Direct. Efficient. The BioMaster Flex DirectFeed seamlessly integrates food waste disposal into the warewashing process, making it a must-have upgrade for your M-iQ flight type dishwasher.​

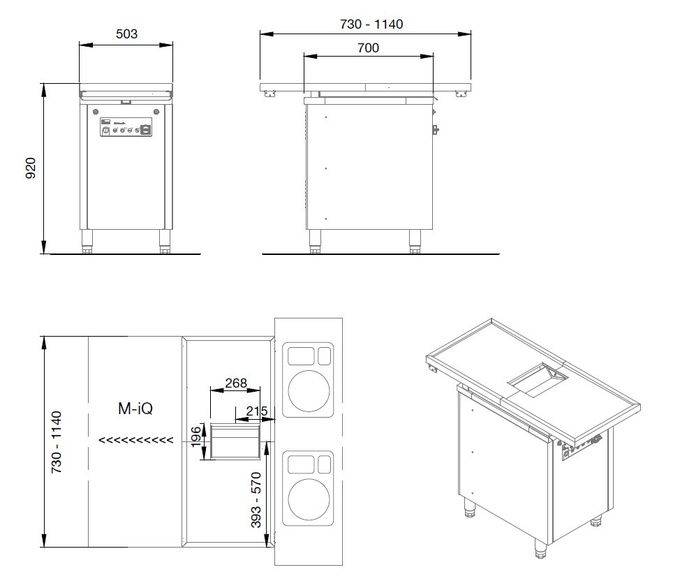

Measurements
