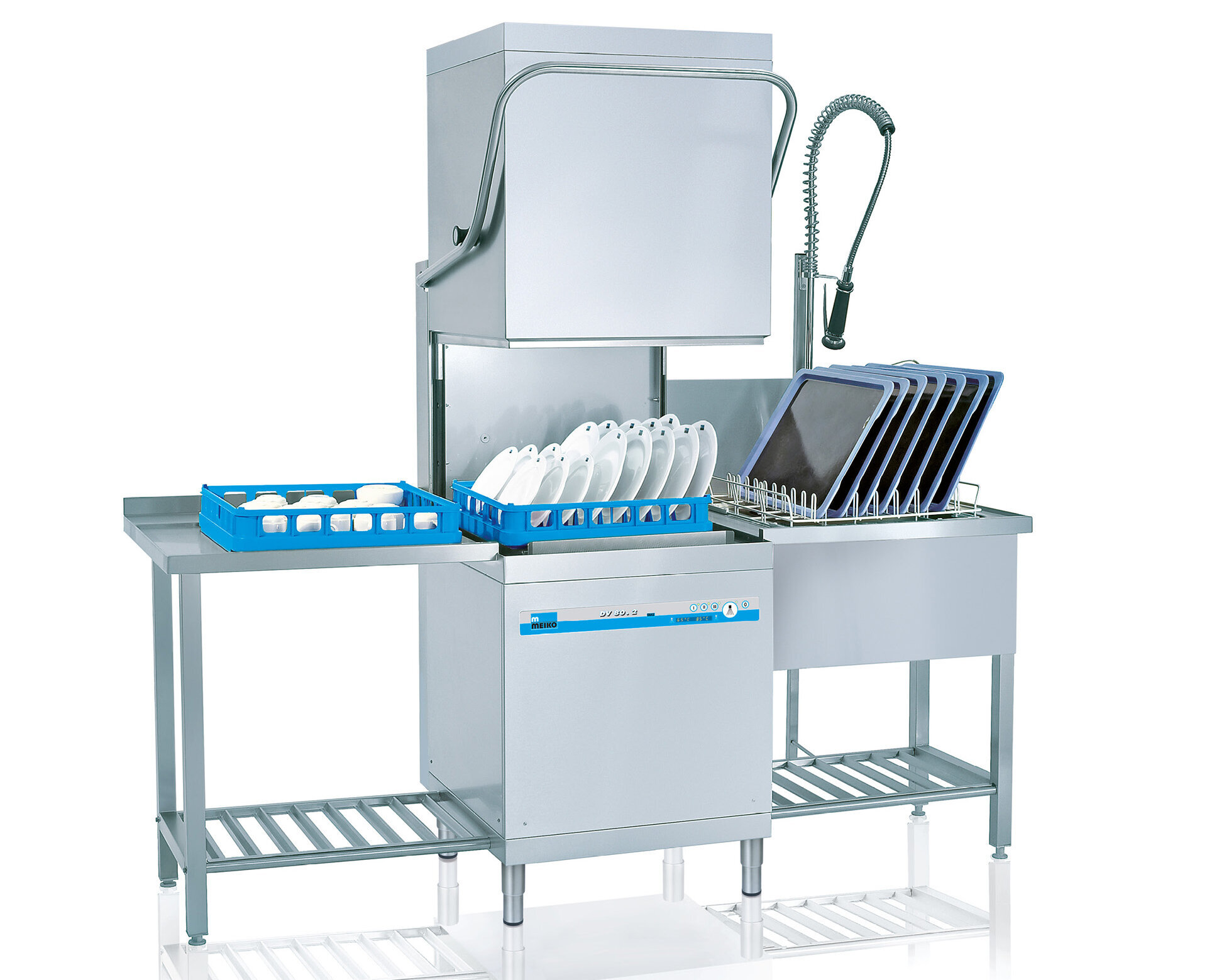

Door Type Dishwashers DV SERIES

RACK FOR REUSABLE DISHWARE

This rack is a great way to assure hygiene safety in bowl cleaning. Accommodates up to six bowls as well as their lids.

PROTECTIVE COVER

Height: 1.6 m

TILTERS

We are able to equip glass racks with tilters on request. These help water to drain out of your glassware

ROLB 500

Platform trolley with drip tray and handle for pushing.

RACK STORAGE UNIT

To be installed under table, can be individually adjusted for different rack heights

NK BASE RACK WITH WHT INSERT

For 4 warmer trays, cutout on one side, stainless steel insert

NK BASE RACK WITH NKT INSERT

For 9 trays, cutout on one side, white insert, polyamide coated

VKV 50 TKT TRAY RACK

For GN trays with lateral opening and with stainless steel reinforced profiles

CUTLERY INSERT

With 7 compartments with VKV 50/1 universal finger rack

KV 34 X 15/1 CUTLERY BASKET

Made of perforated metal sheeting, with 8 compartments (340 x 150 mm)

CBS CUTLERY QUIVER

(Also suitable for rack size 400)

BKS CUTLERY BASKET

With 8 slots, 430 x 210 mm

BV 100 X 50/1

Rack with wheels, made from solid stainless steel, not suitable for inserting into 500 x 500 mm base racks, (interior dimensions 970 x 470 mm)

BV 131 X 70/1

Rack with wheels (1,310 x 700 mm), made from solid stainless steel

BV 131 X 69/1

Rack with wheels (1,310 x 690 mm), made from solid stainless steel

BV 60 X 50/1

Rack insert for baking trays, made from solid stainless steel (600 x 500 mm) 20–30 mm baking tray depth = 11

BV 60 X 50/2

Rack insert for baking trays, made from solid stainless steel (600 x 500 mm) 30–50 mm baking tray depth = 9 trays

BV 60 X 50/3

Rack insert for baking trays, made from solid stainless steel (600 x 500 mm) up to 70 mm baking tray depth = 6 trays

BV 60 X 39 RACK INSERT

(608 x 390 mm) made from solid stainless steel

BV 60 X 50/10 RACK

For 2/1 GN containers (max. 150 mm depth) made from stainless steel

UV 67 X 39 UNIVERSAL RACK INSERT

(670 x 390 mm) made from solid stainless steel

BV 57 X 56 RACK INSERT

(570 x 560 mm) solid stainless steel rack insert for 2–8 GN containers, 1/2–1/1 (max. 65, 100, 150 mm depth)

BV 85 X 70/1 RACK WITH WHEELS

(850 x 700 mm) made from solid stainless steel

BV 60 X 50/9 RACK

Use as tilter for transport containers (600 x 400 mm), made from stainless steel

BV 60 X 50/8 RACK

For 8 display trays/platters/trays (max. 650 x 530 mm, GN 2/1) made from stainless steel

TV 65 X 50/1 PLATE RACK

White, polyamide coated, 8 rows (650 x 500 mm, plate dia. up to 320 mm)

TV 50-22 RACK

Made from stainless steel for 8 display trays (600 x 400 mm)

VKV 60/G GLASS RACK

Rack size 600 x 400 mm, compartments for 15–40 glasses and for different heights of glass

VKV 60/T PLATE RACK

Base rack, 600 x 400 mm with stainless steel insert with or without wheels for large plates, white, polyamide coated, 8 rows, plates up to 320 mm in dia.

DRIP TRAY

For 400 x 400 mm racks

VKV 40/7 PLATE INSERT

For 10 plates designed to fit in VKV 40/4 base rack (rack size 400 x 400 mm)

GV 40/12 GLASS RACK

White, polyamide coated, with sloping base and 3 rows for glasses up to 121 mm in dia., rack height 150 mm, (rack size 400 x 400 mm)

GV 40/9 GLASS RACK

White, polyamide coated, with sloping base and 4 rows for glasses up to 96 mm in dia., rack height 150 mm, (rack size 400 x 400 mm)

GV 40/15 GLASS RACK

With 4 removable stacking rows, tilts glasses (rack size 400 x 400 mm)

VKV 40/4 BASE RACK

Close mesh, height 150 mm (rack size 400 x 400 mm)

UV 40/3 UNIVERSAL RACK

White, polyamide coated, for glasses, cups, saucers, plates up to 200 mm in dia. and cutlery (rack size 400 x 400 mm)

GV 40/10 UNIVERSAL RACK

White, polyamide coated, with tilted base for glasses up to 97 mm, cups, saucers, plates up to 200 mm in dia., rack height 220 mm (rack size 400 x 400 mm)

VKV 40/15 GLASS RACK

Wide mesh, rack height 260 mm with compartments for 16 glasses (rack size 400 x 400 mm)

VKV 40/14 GLASS RACK

Wide mesh, rack height 200 mm with compartments for 16 glasses (rack size 400 x 400 mm)

VKV 60/1 PLATE RACK

For 22 plates, or even 24 plates if flat. Offset rack design ensures plates up to approx. 28 cm in diameter do not touch each other. Flat (pizza) plates up to 32 cm in diameter.

VKV 60/2 SMALL PARTS RACK

Base rack for cutlery baskets, pots, bowls, kitchen utensils, cups (rack size 600 x 500 mm)

VKV 60/3 TRAY RACK

For 12 small trays or 10 GN trays (rack size 600 x 500 mm)

DRIP TRAY

For 500 x 500 mm racks

UV 50/5 TRAY RACK

White, polyamide coated, for 530 x 325 mm GN trays and large, flat plates (rack size 500 x 500 mm)

GV 50/17 UNIVERSAL RACK

White, polyamide coated, for glasses, cups, saucers, plates up to 200 mm in dia. and cutlery (rack size 500 x 500 mm)

GV 50/21 GLASS RACK

With 5 rows, glasses up to 90 mm in dia., rack height 220 mm (rack size 500 x 500 mm)

GV 50/23 GLASS RACK

With 5 rows, glasses up to 90 mm in dia., rack height 150 mm (rack size 500 x 500 mm)

GV 50/20 GLASS RACK

White, polyamide coated. With 4 rows, glasses up to 110 mm in dia., rack height 220 mm (rack size 500 x 500 mm)

GV 50/22 GLASS RACK

White, polyamide coated. With 4 rows, glasses up to 110 mm in dia., rack height 150 mm (rack size 500 x 500 mm)

VKV 50/G 711 GLASS RACK

For 49 glasses, max. glass dia.: 63 mm, max. glass height: 110 mm (rack size 500 x 500 mm)

VKV 50/G 611 GLASS RACK

For 36 glasses, max. glass dia.: 74 mm, max. glass height: 110 mm (rack size 500 x 500 mm)

VKV 50/G 521 GLASS RACK

For 25 glasses, max. glass dia.: 90 mm, max. glass height: 210 mm (rack size 500 x 500 mm)

VKV 50/G 516 GLASS RACK

For 25 glasses, max. glass dia.: 90 mm, max. glass height: 160 mm (rack size 500 x 500 mm)

VKV 50/G 416 GLASS RACK

For 16 glasses, max. glass dia.: 113 mm, max. glass height: 160 mm (rack size 500 x 500 mm)

NK 130 UNIVERSAL BASE RACK

Clearance height 130 mm, can also be used as a base rack for cutlery baskets (rack size 500 x 500 mm)

NK 110 UNIVERSAL BASE RACK

Clearance height 110 mm, can also be used as a base rack for cutlery baskets (rack size 500 x 500 mm)

GV 50/25 GLASS RACK

With 5 removable stacking rows, tilts glasses (rack size 500 x 500 mm)

P 15 PLATE RACK

For 15 large plates, suitable for plates with min. dia. 180 mm (rack size 500 x 500 mm)

NK BASE RACK WITH PTE INSERT

For 9 large plates, white insert, polyamide coated (rack size 500 x 500 mm)

TAV CUP RACK INSERT

White, polyamide coated, with sloping rows for VKV 50/2 small parts rack (rack size 500 x 500 mm)

VKV 50/2 BK SMALL PARTS RACK

(Close mesh) for small cutlery items (rack size 500 x 500 mm)

VKV 50/2 SMALL PARTS RACK

Can also be used as a base rack for BKO cutlery basket (rack size 500 x 500 mm)

UV 46 X 46/1 COVER SCREEN

White, polyamide coated, prevents lightweight items from lifting out of VKV 50/2 or VKV 50/2 BK small parts rack (rack size 500 x 500 mm)

VKV 50/1 PLATE RACK

For plates, dishes, cups and saucers (rack size 500 x 500 mm)

BOTTLE RACK

Bottle rack with adapter for rinsing bottles, carafes, jugs. (Rack size: 500 x 500 mm). Max. bottle height (depending on the outer diameter of the bottle neck) 230–245 mm in the case of the M-iClean UM and 355–370 mm when using the M-iClean UM+
