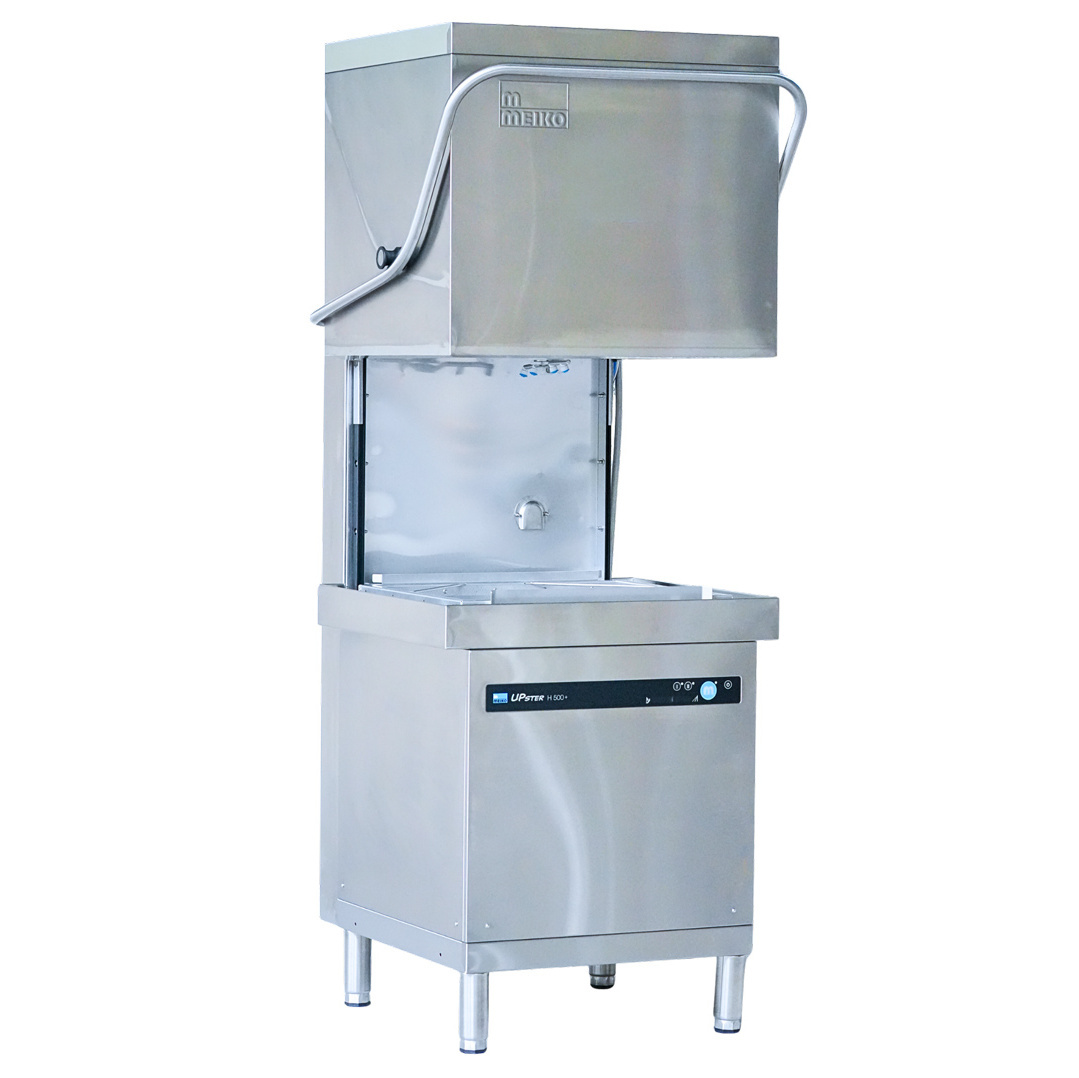

MEIKO UPster® H 500+

Powerful Washing. Extra Space.

HOOD TYPE DISHWASHER

From cafés and bakeries to butchers, bistros, and restaurants, commercial dishwashers need to handle it all. That’s where the MEIKO UPster® H 500+ makes a real difference.

With a wider entry and rack dimension than the standard UPster® H 500, it easily accommodates larger or awkward items – from big cutting boards and baking trays to oversized plates. In fast-paced kitchens where portion sizes are generous and service never stops, that extra space keeps things moving.

The UPster® H 500+ lets you wash more in each cycle, cutting down on time and energy use, while its high entry clearance means bulky items fit comfortably without extra scrubbing. Built on the trusted UPster® series, it combines German reliability, energy efficiency, and user-friendly interface to meet the demands of Hospitality and Food Service industry.

Arrange a consultation appointment now

ALL THE BENEFITS OF UPster® H 500 AND MORE

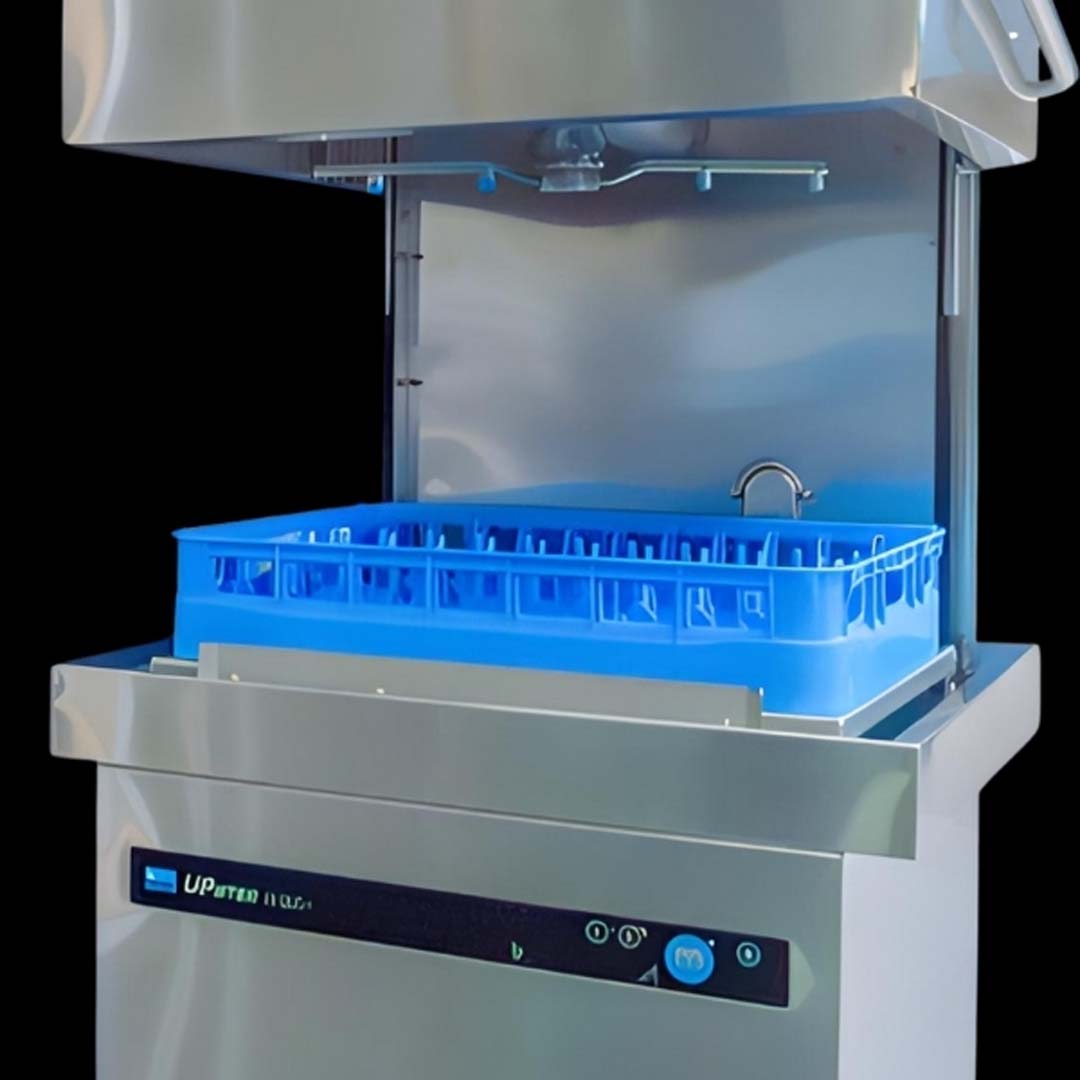

Handle larger items with ease – Efficiently wash larger items like GN 1/1 pans, trays, lids, 600 x 400 baking trays, big utensils, and chopping boards.

More capacity for regular items – Take care of everyday loads, with higher capacity for plates, bowls, cups, glasses, and cutlery.

Wash glassware without worry – With the integrated soft start feature, high volume glass washing is now possible!

FEATURES

Proven standards of hygiene thanks to digital display of wash and rinse temperatures
Fully electronic control system with built-in infrared interface – makes servicing tasks quicker and easier
Eco-filter system provides brilliant rinsing results thanks to superb wash water filtering and optimum tank water regeneration
Double walled construction with additional hood insulation – reduces heat and noise emissions
Hood vents to the rear – directs steam away from the operator
Automatic start – machine starts automatically when hood handle is pressed down
Stainless steel wash and rinse systems at top and bottom
Deep-drawn wash tank containing just 22 litres
Sloped hood ceiling and surrounding drip channel prevent wash water dripping onto dishware
Easy-clean interior – no pipes obstructing the inside of the wash chamber
Two standard-size blue 500 x 500 mm included. 600 x 500 mm basket optional.

DOUBLE-WALL CONSTRUCTION

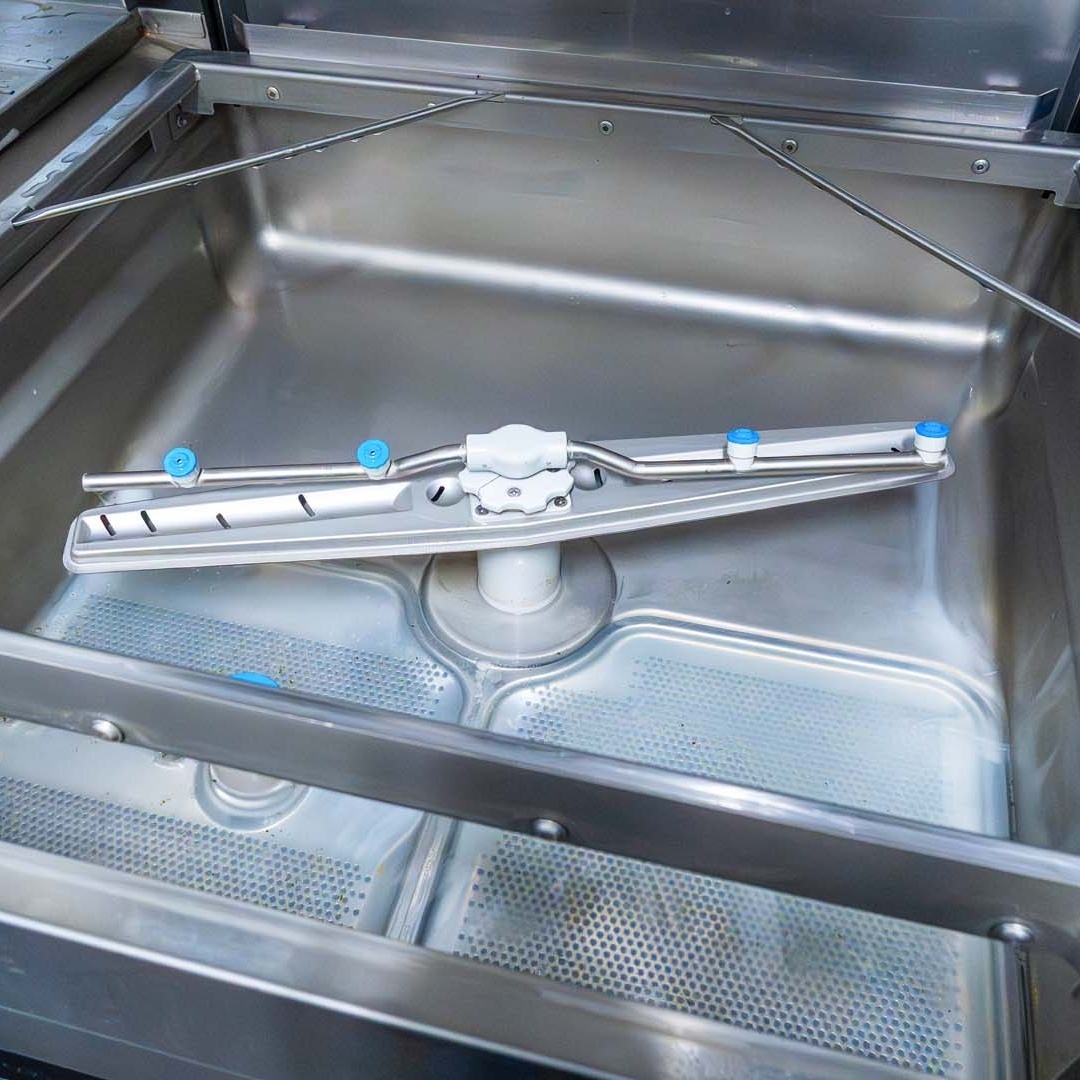

The UPster® H 500+ features a well-designed, professional wash chamber built with robust technology and high-quality materials for consistently excellent cleaning results. It also includes two cleverly designed, easily removable strainer screens that sit over the wash tank for quick and simple cleaning.

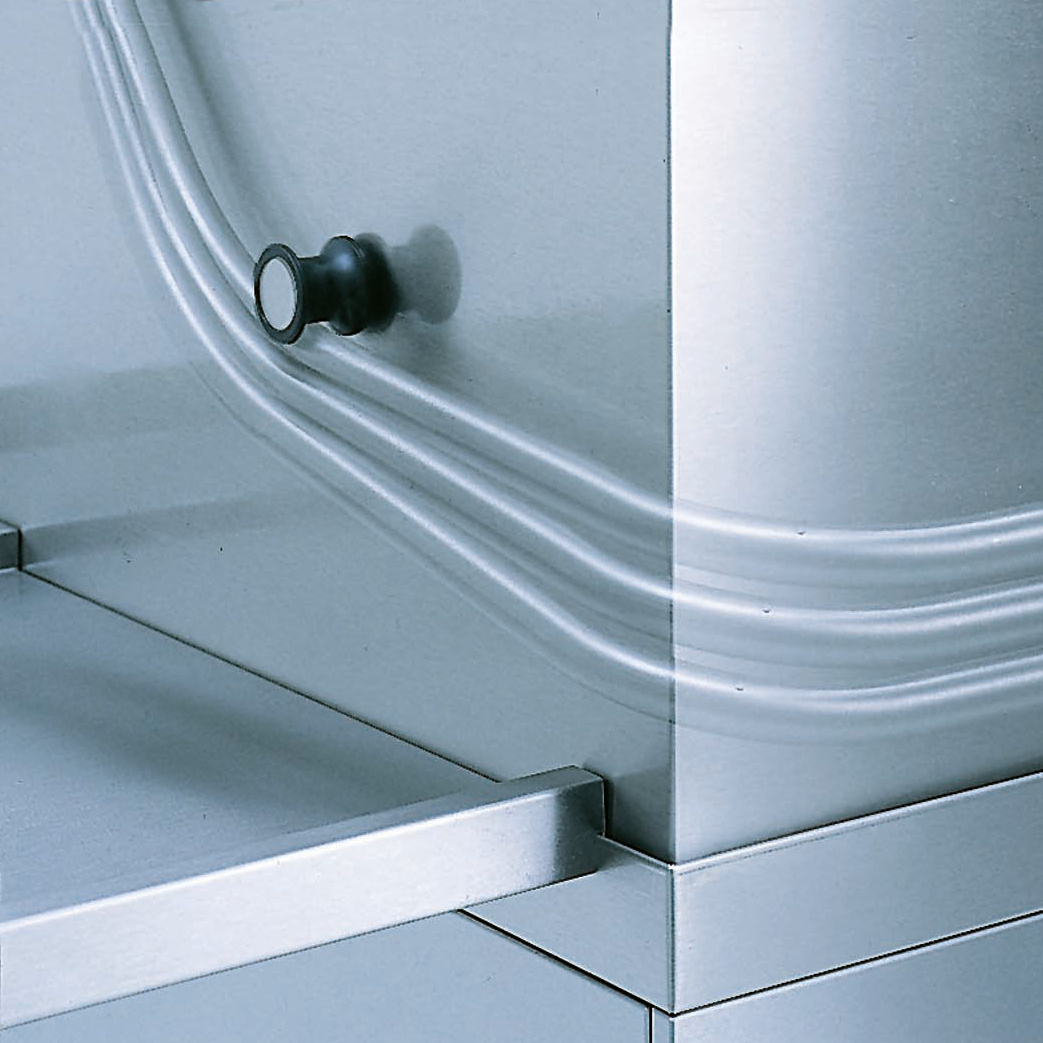

ERGONOMIC HANDLING

Thanks to all-around hood grip. Simply press down the hood grip to start the program.

EXCELLENT WASH RESULTS

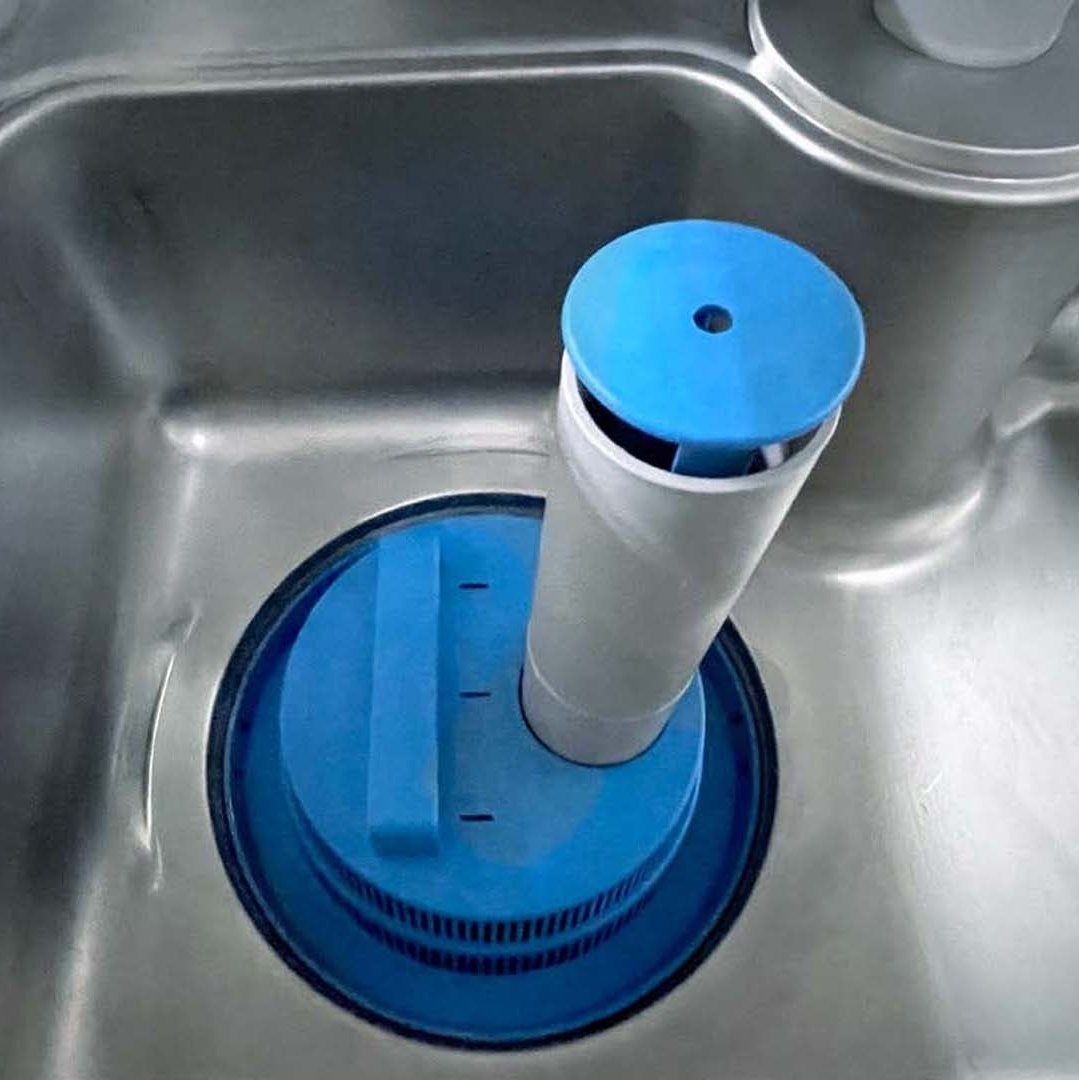

The original MEIKO Eco-filter system filters the wash water in UPster® machines, ensuring maximum hygiene and clean tank water.

EASY-TO-CLEAN

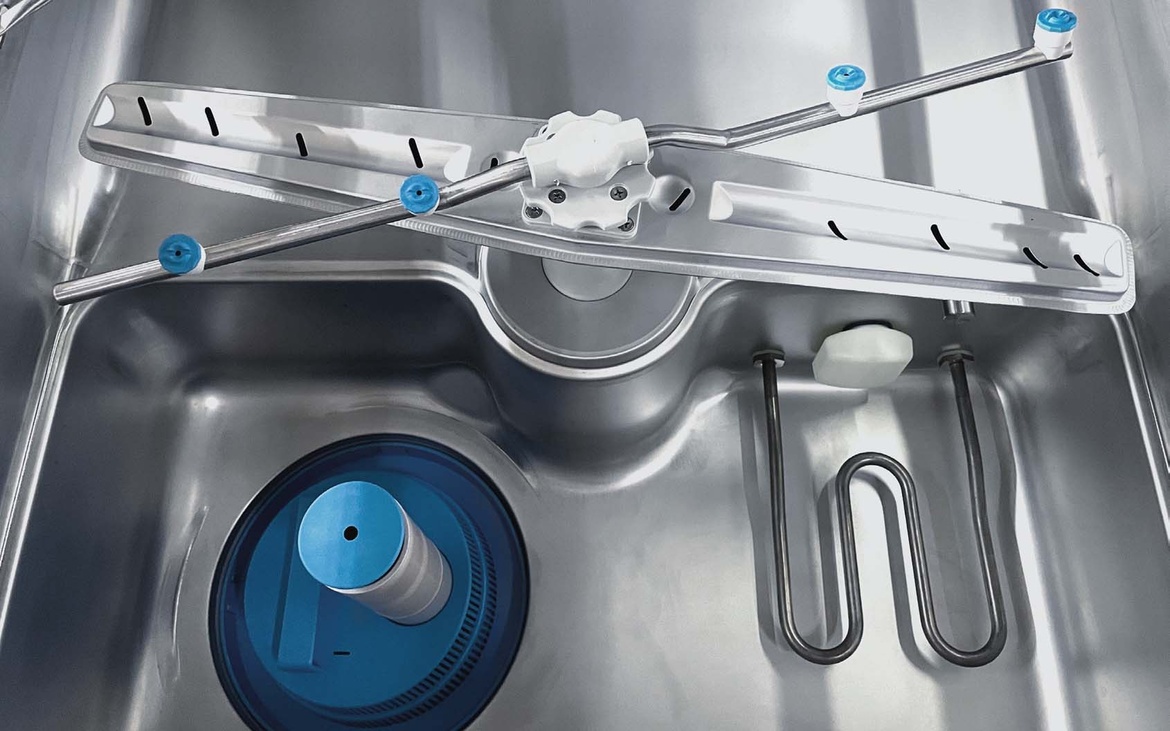

Located towards the front of the machine, the deep-drawn wash tank is de-signed for low maintenance and easy access. No pipes or tubes on the back of the machine which could get in the way. Superbly user-friendly eco-filter.

Options for vapour treatment

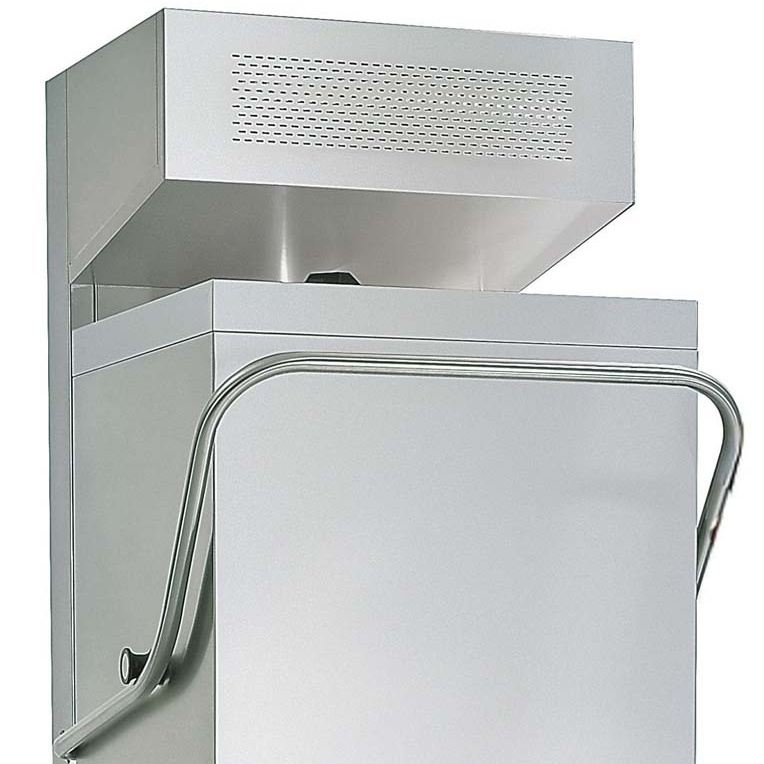

MEIKO AIRBOX AKTIVAIR FOR UPster® H 500+

AirBox AktivAir vapour condensation hood (optional): a huge boost in comfort in the wash-up area

Centralised vapour management

Significantly reduces the amount of steam released
Keeps steam away from machine operators
Built-in condensate drain
Steam extraction initiated by dishwashing programme
Continues running for specified time after programme finishes
No filter technology – maintenance free

DOWNLOADS

UPster® H 500+ Installation Drawing

PDF, 262 KB

UPster® H 500+ Technical Data Sheet

Spec sheet

PDF, 446 KB
