UPster® B COMMERCIAL CATERING DISHWASHER
TECHNICAL DATA

A new generation of warewashing technology

UPster B 230 VAP
Conveyor dishwasher UPster
UPster B 460 VAP
Conveyor dishwasher UPster
UPster B 690 VAP
Conveyor dishwasher UPster
Passing height400 mm
Passing width620 mm
Machine length8700 mm
Transport speed2,25 m/min

Five wash and rinse processes ensure sparkling clean results every time. The UPster® B 230 VAP's patented AWS (active water saver) makes this flight-type conveyor dishwasher even more resource-efficient and eco-friendly, reducing the freshwater usage by 19 percent. The Low Energy Management system also reduces energy consumption by 16% making the UPster® B 230 VAP the perfect solution to improve working conditions and protect the environment - and your bottom line.

Measurements

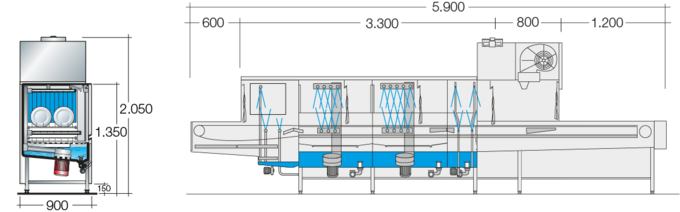

Dimension sheet flight type dishwasher UPster B 230 VAP CSS

For more product information please contact your sales partner.

The award-winning integrated Low Energy Management together with the Heat Recovery feature which pre-heats rinse water and reduces exhaust air significantly reduces the running costs. The UPster® B 460 VAP's MIKE 3 CleanControl system makes hygiene management more efficient than ever and ensures maximum cleanliness all the way down the line. The UPster® B 460 VAP is a flight-type conveyor dishwasher that offers all the latest warewashing improvements in a single dishwashing system.

Measurements

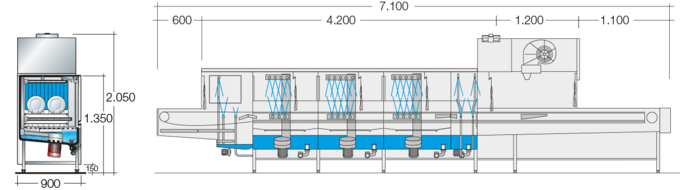

Dimension sheet flight type dishwasher UPster B 460 VAP CSS

For more product information please contact your sales partner.

The UPster® B 690 VAP is a flight-type conveyor dishwasher that offers an outstanding array of advanced technologies that make dishwashing economical, resource-efficient, and user-friendly. We designed the UPster® B 690 VAP to make hygiene management more efficient and guarantee maximum cleanliness and safety so you do not have to worry. Also, the intelligent Active Water Saver significantly reduces the amount of water and chemicals used to guarantee low operating cost.

Measurements

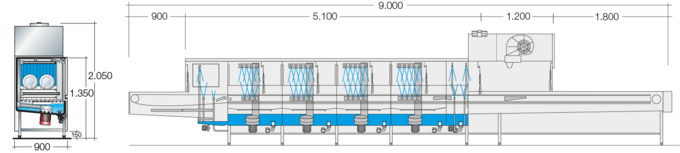

Dimension sheet flight type dishwasher UPster B 690 VAP CSS
Passing height400 mm
Passing width620 mm
Machine length8700 mm
Transport speed2,25 m/min
Rinse water volume340 liters/cycle
Total connected load62,59 kW
Dish capacity (DIN)5000 plates/h
Dish capacity (min.)7500 plates/h
Dish capacity (max.)8000 plates/h

Not available in all markets.
Technical modifications reserved.
